Brilliantly Engineered Audio Accessories That really work
For many years, UK-based Connected Fidelity have been manufacturing a wide range of audio accessories that can elevate the performance of any Hi-Fi system. From their Float series isolation pucks to their highly regarded Six Star AC distribution block, all of Connected Fidelity’s products are engineered to be highly efficient as well as cost effective, bringing real results to audiophiles around the globe. In addition to their line of accessories, Connected Fidelity also offers the beautifully crafted TT-Hub turntable, and the new Connected Fidelity CF-1010 tonearm, making analog excellence a key company priority.
SiX Star AC power distribution blocks
Award winning Six Star power conditioners are cryogenically treated AC distribution blocks, using special point-to-point, no-solder, “star-wiring” for a robust and equal ground connection for all components. Built-in wide-band RFI filters on the supply side offers incredibly clean power and low noise, increasing system efficiency for maximum dynamic impact.
High purity gold-plated input sockets and low resonance case construction using a combination plastic and non-magnetic stainless steel sub chassis for low vibration intrusion further ensure a detailed and textural musical presentation.
The Six Star AC block has been praised by many respected audio review publications including The Audiophile Man, HiFi Pig, and Audiophilia. This highly regarded piece of equipment is finally available to music lovers in the USA through Sierra Sound.

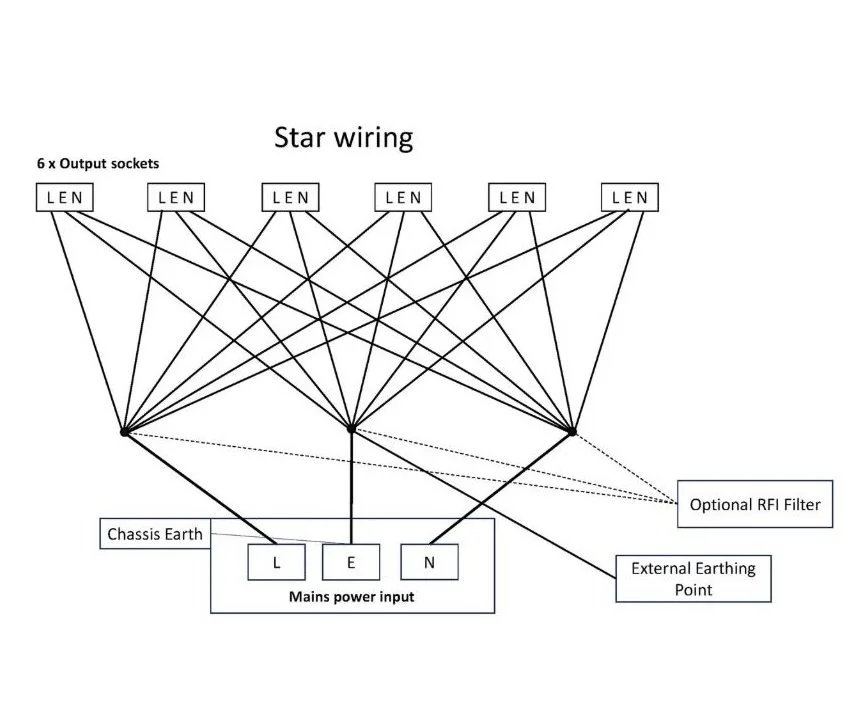

Star wired power distribution is where multiple devices are connected to central L.N.E. power source points, like the spokes of a wheel connecting to the wheel hub. Each power socket has its own dedicated direct connection to the power source point on the Live and Neutral line, and direct grounding ‘star’ point as well.
Star wiring ensures that each device in your system receives an identical level of power and that impedance is identical for each powered component, reducing both system and background noise.
Click here for a White Paper detailing the technical aspects of the Six Star
Float Isolation pucks
Connected Fidelity’s award-winning Float series isolation pucks are not just for turntables- these highly adaptable isolation pucks can be placed under any source component, amplifier, or loudspeaker to achieve remarkable improvements in bass response and imaging. By reducing and absorbing both internal and external vibrations, these cleverly designed isolators can improve the performance of any component in the signal chain.
Available in sets of 3 or 4, in silver or black finish, Float series isolation pucks are built around internal hardened spheres which minimize mechanical contact and energy transfer while improving stability. The spheres are made of high tech POM (Polyoxymethylene) or Chromium steel material (depending on weight range) and are housed inside a non-resonant anodized aluminum housing. Numerous interface options make Float isolations pucks compatible with a wide range of audio gear.
Available in both dark stained and clear lacquer finish, the TT Hub achieves excellent sonic performance and good looks at a realistic price point. Designer Michael Osborn chose bamboo as the ideal material for such a design, because it is economical, attractive, and has excellent sonic characteristics.
The non-suspended TT Hub turntable includes its own bespoke isolation base, also made of precision crafted bamboo, with top isolation components and silicon damping feet. A self-lubricating main bearing design utilizes a PEEK (polyetheretherketone) base component, a special plastic chosen for its very low friction characteristic, on which a sapphire thrust bearing sits, all housed within a thick wall aluminum body. The solid, 30mm thick acrylic platter of the TT Hub has a foamed record mat bonded to the top face to absorb and isolate the LP from any extraneous vibrational energy.

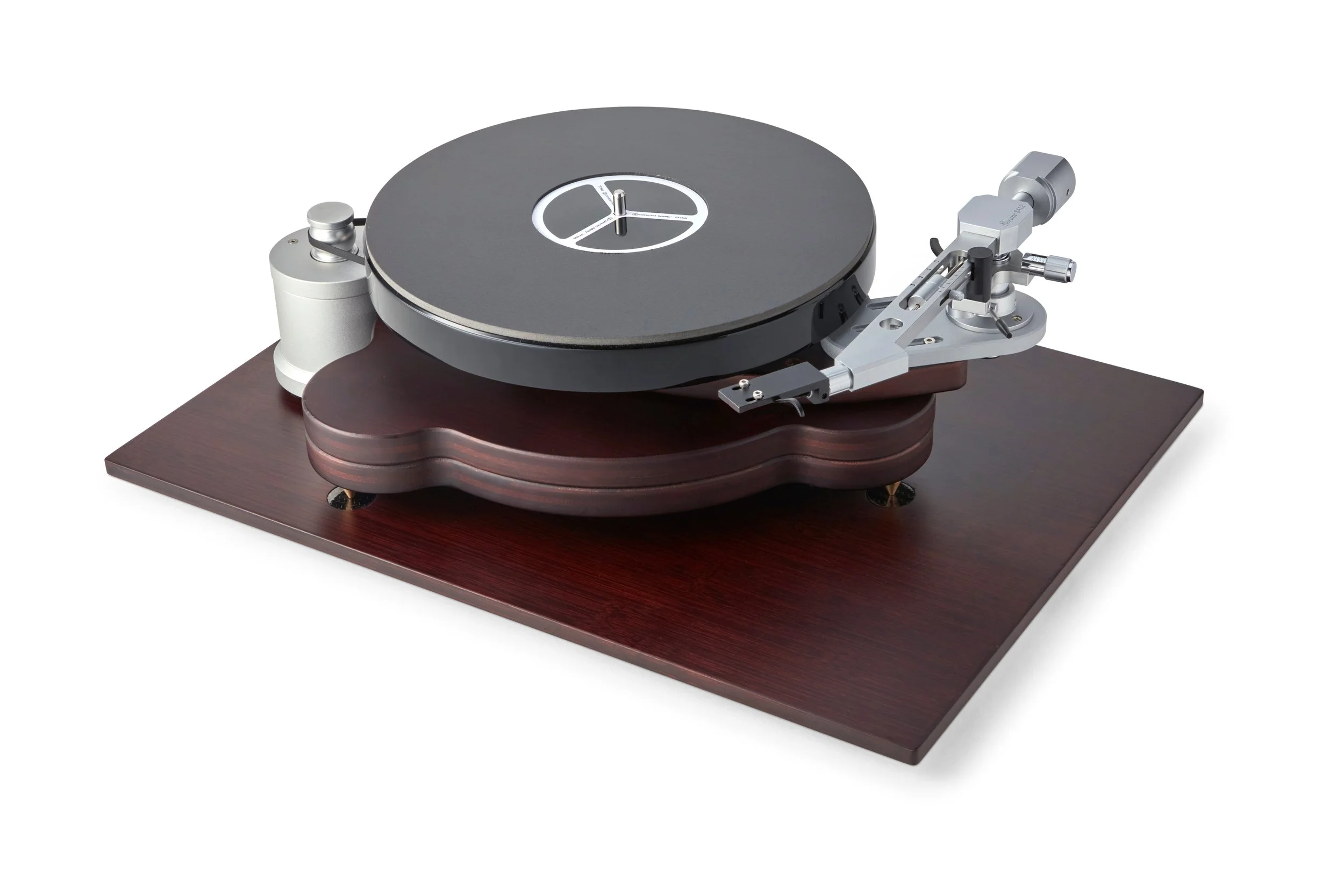

the TT Hub Turntable
The turntable features a sophisticated outboard speed controller/power supply unit, controlled by a quartz clock, to ensure constant and steady speed. This feeds a high-precision AC synchronous motor, housed in a heavy-duty aluminum case. The result is speed accuracy within 0.003%, even with fluctuations from the mains supply.
The TT Hub can be special ordered in either 1 or 2 tonearm versions. Standard armboards, made from solid anodized aluminum, are compatible with Sorane, Rega and Linn tonearms. Custom armboards can be drilled for a wide range of tonearms from other manufacturers in 9”, 10” and 12” lengths.
-
Turntable dimensions and weight with base:
Width= 21.25"
Depth= 15.5"
Height= 7" (no arm)
Weight= 24lbs (no arm)
Power supply: Outboard quartz clock regulated voltage controller with speed selection and speed fine-tuning
Width= 6.25"
Depth (including knobs) 13.75"
Height= 3.25"
Weight= 6.5lbs
Motor: AC synchronous belt-drive outboard motor
Motor power cable length= 77”
Bearing: Self-lubricating bronze sintered bearing utilises with PEEK base component and sapphire ball
Platter: 1.25” thick solid acrylic with rigid foamed top damping layer
Base: Bamboo ply base with tuned carbon fiber composite spike plates and compliant silicon footers.
Feet: height adjustable brass spikes
CF-1010 Tonearm
The CF-1010 is a 9-inch tonearm featuring a traditional S-shape armtube build from titanium for maximum strength and rigidity. With an effective length of 229mm (211mm mounting distance), a low-to-medium effective mass, and industry standard Linn-style mounting configuration, the CF-1010 is adaptable to a wide range of turntables.
The CF-1010’s integral headshell incorporates resonance-absorbing 3-layer construction consisting of ceramic, polyurethane, and titanium layers for maximum energy control at the critical cartridge mount. Pre-loaded single-point bearings offer zero jitter and ultra-low friction. High-quality fine internal wiring runs from the arm to the pillar, presenting minimal resistance and ensuring consistent anti-skate bias via the hanging weight across the entire record surface.

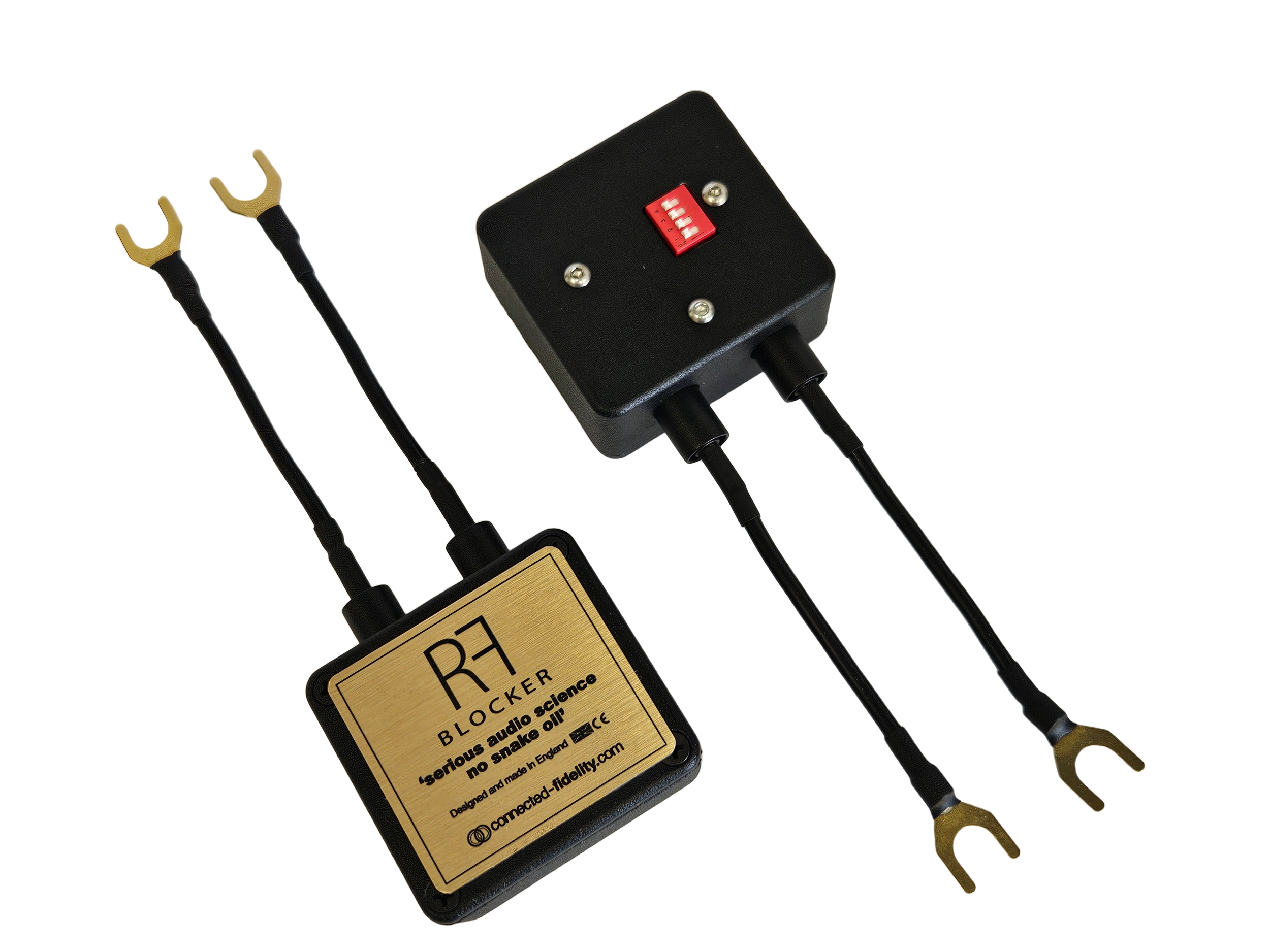

RF Blocker Gold
RF Blocker GOLD is a high specification radio frequency (RF) filter array with switched filter selection. Supplied in pairs with either Spade or Banana terminals, they can be attached to either your speaker or amplifier terminals. An entirely passive device, the RF Blocker Gold has no effect on impedance or any other amplifier/speaker characteristics, while effectively preventing a broad spectrum of RF and WiFi noise from entering the system through your loudspeaker cables.
The RF Blocker Gold is manufactured to high audiophile standards, all signal parts are cryogenically treated. High quality electrical components are used, all housed in a die-cast aluminium box acting as a Faraday cage to ensure no additional RF interference enters the audio chain. DIP switches turn on/off the 4 x RF filters for maximum flexibility.
Unity Series Cables
Unity series cables from Connected Fidelity are hand made in England and cryogenically treated. To shield against radio frequency interference, a double layer shielding of foil plus UP-OCC copper braid wraps around the signal wires for the highest level of RF shielding, and cables are mechanically isolation from vibration by specially designed double sleeving. Interconnect cables, speaker cables, and AC power cables are all available in various lengths. Click below for more info from the manufacturer’s website:
