Below is a collection of technical notes, diagrams, and specifications regarding ViV Laboratory Rigid Float tonearms

Click here to download the Rigid Float manual in pdf format

Technical Specifications:

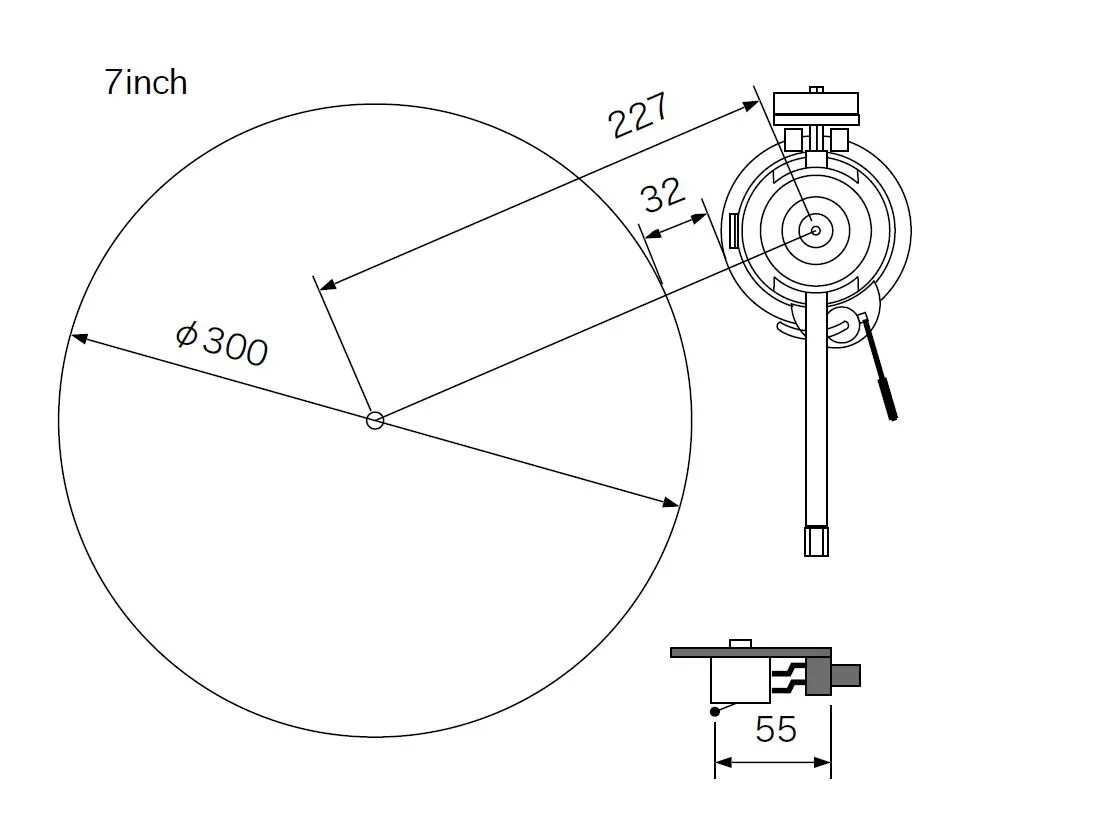

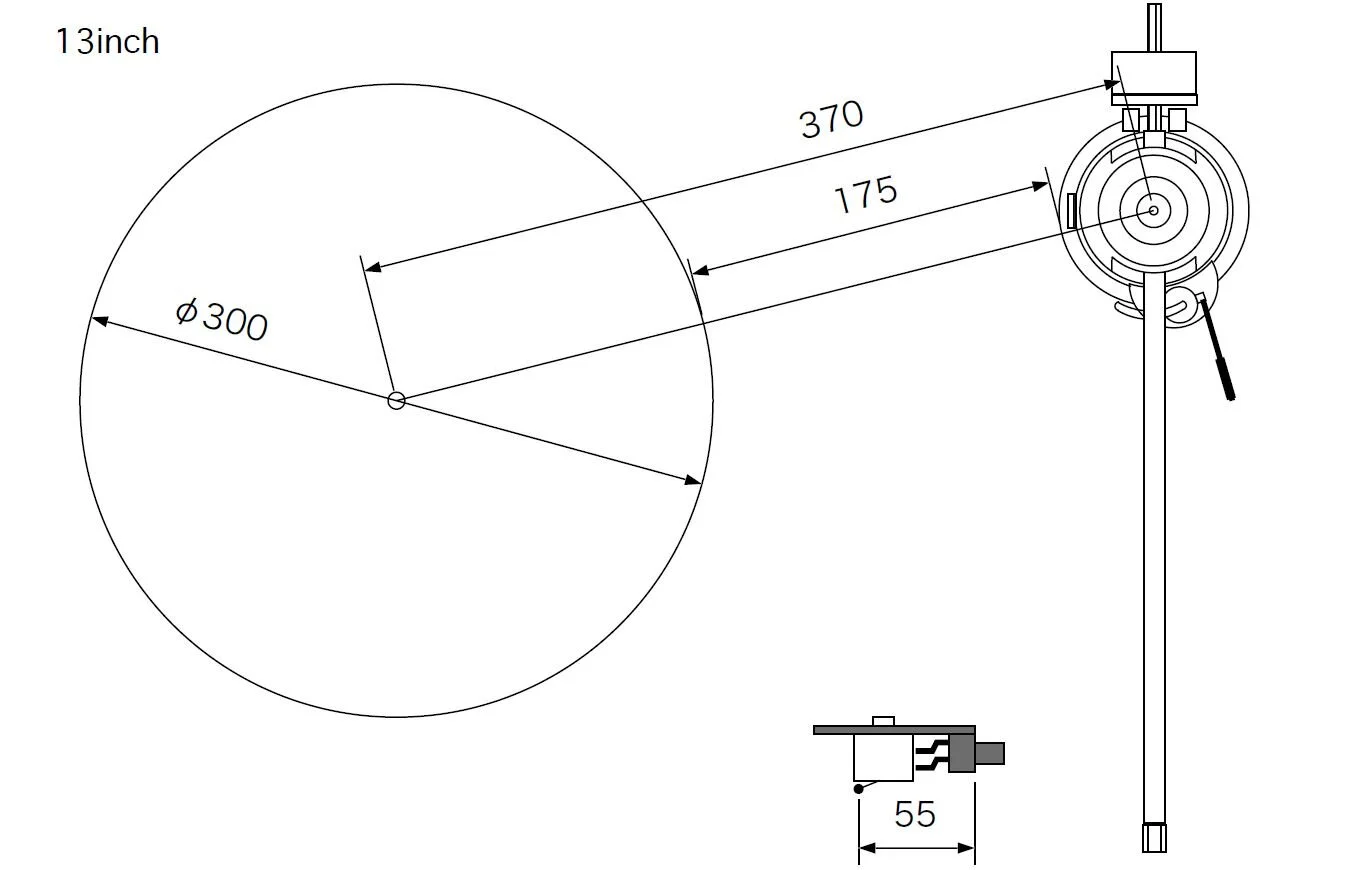

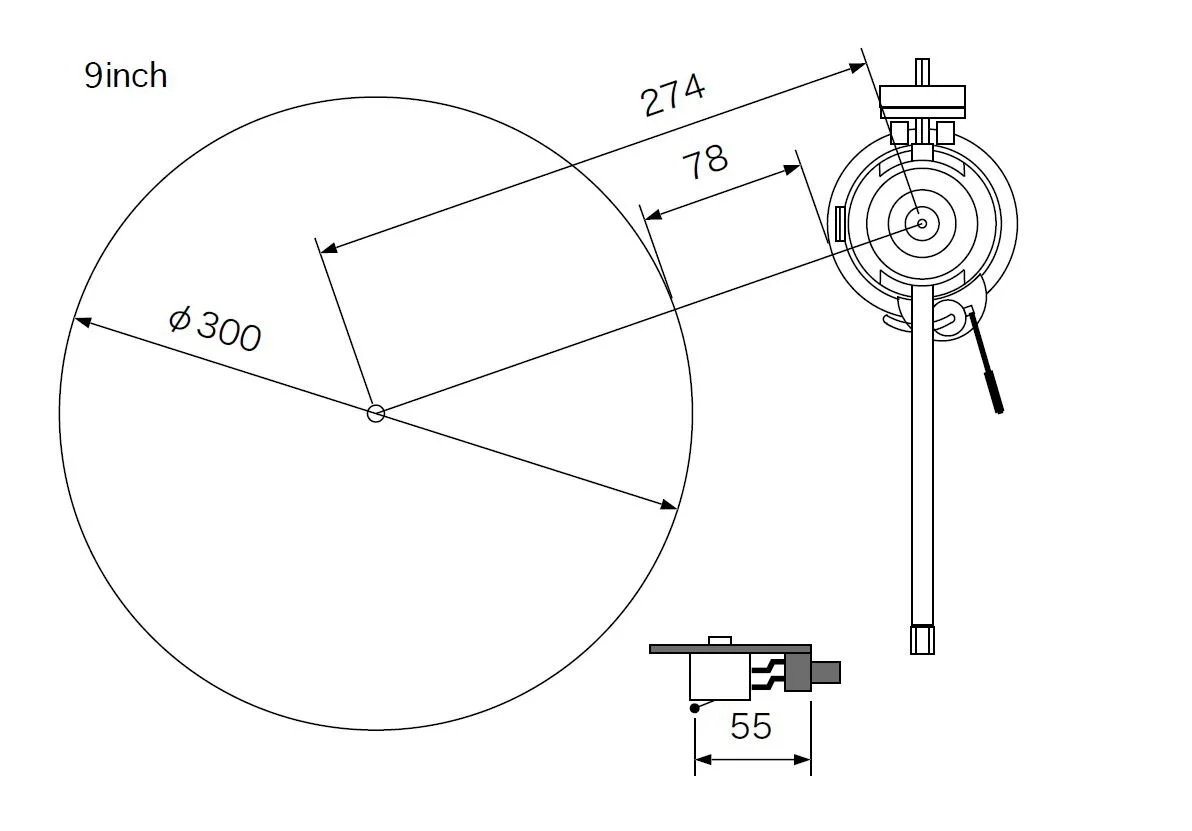

Pivot to Spindle distance* 227mm (7” version) 274mm (9” version) 370mm (13” version)

Effective length* 209mm (7” version) 259mm (9” version) 359mm (13” version)

Overhang -18mm (7” version) -15mm (9” version) -11mm (13” version)

Height of arm center 57 to 77mm (all models)

Offset angle 0 degrees (all models)

Weight Approximately 4-5 lbs (all models)

*placement specifications assume a 55mm distance from back of headshell to stylus. This value may vary by approximately +/- 6mm depending on cartridge type and cantilever length

Mounting Surface to Platter distance

The Rigid Float tonearm is designed to operate best when placed on a surface that is approximately 45mm to 65mm lower than the top of your platter. This value may vary by +/- 3mm depending on cartridge height dimensions. For turntables without sufficient platter to surface distance, outboard placement of the tonearm is recommended.
